SPOT LIGHT
 Produces
a shadow, increases contrast, creates an effect similar to a Fresnel fitted
with a light diffuser. |
| Spot
effect, with variable horizontal angle, from 35° to 90°. |
| Allows DMX control of the
entire studio by replacing conventional spots. |
| Low electrical consumption,
with little heat generation. |
| Long lamp life. |
The SPOTFLUX is a fluorescent fixture used to create spot effects by producing a beam narrower than traditional fluorescent fixtures. It is an ideal complement to the FLUXLITE and QUADLITE. The SPOTFLUX is soft and directional, ideal for front and back lighting, and for isolated objects.
The SPOTFLUX is used for all applications, but mainly in TV news, interviews, weather, etc.
The difference between the SPOTFLUX 1, 2 and 4 is power.
The SPOTFLUX is used as a complement ambient light.
We recommend the following associations:
SPOTFLUX 1 <> DUOLITE <> distance to subject : 2 to 3m (6 to 10
ft)
SPOTFLUX 2 <> QUADLITE <> distance to subject : 3 m to 4 m (10 to
13 ft)
SPOTFLUX 4 <> FLUXLITE / POWERFLUX <> distance to subject : 4 m
to 5 m (13 to 16 ft)
|

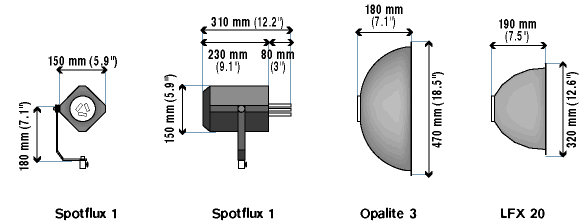

SPOTFLUX 1 |

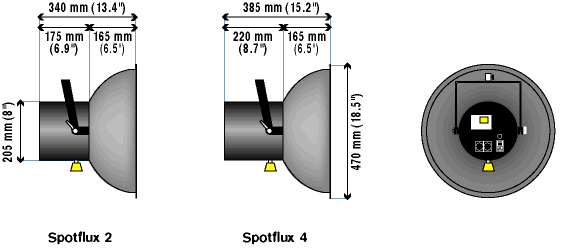

SPOTFLUX 2 |
SPOTFLUX 4 |
Technical Especifications
| SPOTFLUX 1 | SPOTFLUX 2 | SPOTFLUX 4 | |||||||||||
|
POWER
|
45W | 85W | 170W | ||||||||||
|
NUMBER OF LAMPS
|
1 | 2 | 4 | ||||||||||
|
COLOR TEMPERATURE
|
Ra 80 series lamps type 3200K, 4200K or 5000K | Ra 80 series lamps type 3200K, 4200K or 5000K | Ra 80 series lamps type 3200K, 4200K or 5000K | ||||||||||
|
AC MAINS 50/60 Hz
|
120V | 0.4 A | 0.8 A | 1.6 A | |||||||||
| 230V | 0.2 A | 0.4 A | 0.8 A | ||||||||||
|
HF BALLAST
|
56 kHz COS : 0.96 | 56 kHz COS : 0.96 | 56 kHz COS : 0.96 | ||||||||||
|
DIMMING (3 to 100%)
|
0/+10V, DMX-512, manual | 0/+10V, DMX-512, manual | 0/+10V, DMX-512, manual | ||||||||||
|
HOUSING
|
epoxy coated aluminium extrusion | epoxy coated aluminium spinning | epoxy coated aluminium spinning | ||||||||||
|
REFLECTOR
|
Focusing | Candelas | 2m / 6.6ft | Hor. Angle | Vert. Angle | Candelas | 2m / 6.6ft | Hor. Angle | Vert. Angle | Candelas | 2m / 6.6ft | Hor.Angle | Vert.Angle |
|
OPALITE 3
|
Concentrated | 5.200 | 1.300 LUX (120 FC) | 15° | 15° | 7.600 | 1.900 LUX (175 FC) | 35° | 30° | 10.500 | 2.600 LUX (240 FC) | 45° | 45° |
| Wide angle | 3.000 | 750 LUX (70 FC) | 20° | 20° | 2.400 | 600 LUX (55 FC) | 90° | 50° | 3.400 | 850 LUX (80 FC) | 90° | 55° | |
|
LFX20
|
Concentrated | 3.300 | 825 LUX (75 FC) | 30° | 30° | ||||||||
| Wide angle | 2.800 | 700 LUX (65 FC) | 45° | 45° | |||||||||
|
MOUNTING
|
female 16mm / 5/8" | male 28 mm / 11/8" | male 28mm / 11/8" | ||||||||||
|
YOKE
|
manual | manual, Pole-Operated (option) | manual, Pole-Operated (option) | ||||||||||
|
WEIGHT
|
2.5kg (5.5 lbs) | 5kg (11 lbs) | 5.5 kg (12lbs) | ||||||||||
|
ACCESSORIES
|
Grids, reflectors, stands, bags… | Grids, Pole Operated, hanging systems… | Grids, Pole Operated, hanging systems… | ||||||||||
